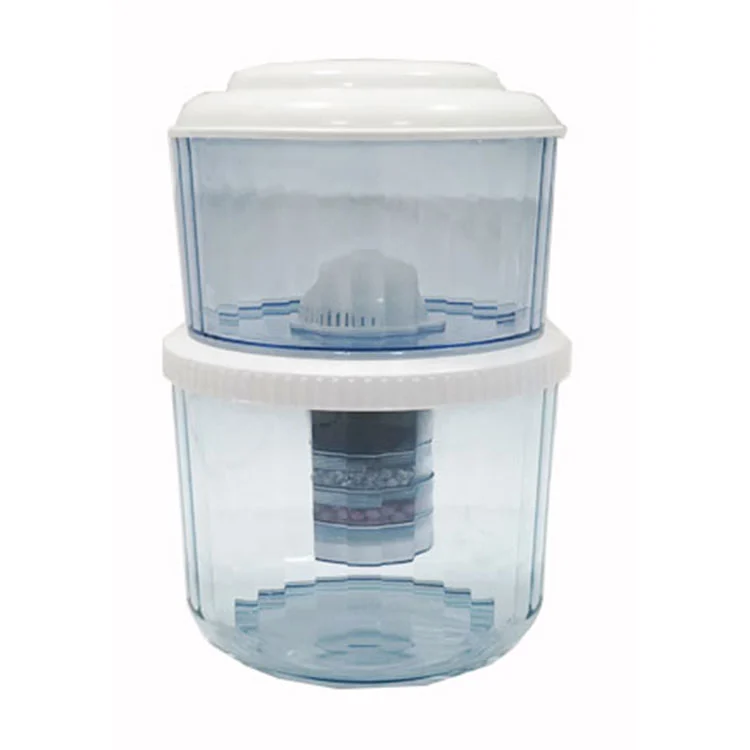

12L Mineral Activated Carbon Filter Bottle

Product Parameter

Designed for Top Load Water Dispenser Systems

The 12L Mineral Activated Carbon Filter Bottle is specially designed to work together with top load water dispensers, providing a convenient filtration solution for daily drinking water needs.

With a 12-liter capacity, it is suitable for family drinking areas, kitchens, offices and other environments where continuous access to purified water is required.

The bottle structure allows users to combine filtration and water dispensing functions in one system, reducing installation complexity while improving daily convenience.

Food-Grade Materials for Reliable Water Contact Safety

Aofukang uses food-grade PP and AS materials for the main water-contacting components of the filter bottle. The material selection helps prevent unwanted odors and supports stable performance during long-term use.

Through controlled production processes and quality inspections, the product meets the requirements of customers seeking reliable drinking water components for dispenser applications.

Multi-Stage Filtration for Improved Water Quality

The 12L Mineral Activated Carbon Filter Bottle adopts a multi-layer filtration structure to provide progressive purification performance.

Different filter materials work together to:

1.Capture fine suspended particles

2.Reduce residual chlorine and unpleasant odors

3.Improve water taste

4.Support mineral balance

The layered filtration design helps maintain stable water quality while extending the functional life of the filter system.

Core Filter Element Function Analysis

The core filter element adopts a composite filtration design combining purification and mineralization functions.

Main filter materials include:

• Granular activated carbon

• Mineral red and white balls

• Quartz sand

• Ion exchange resin

Each component provides specific filtration performance.

Granular Activated Carbon

The activated carbon layer uses adsorption properties to reduce residual chlorine, odors and certain organic impurities in water.

It plays an important role in improving water taste and reducing unpleasant smells commonly found in tap water.

Mineral Red and White Balls

The mineral balls release trace mineral elements such as calcium and magnesium during filtration.

This process helps improve the taste characteristics of purified water and provides a more natural drinking experience.

Quartz Sand

Quartz sand acts as a fine filtration medium to capture smaller impurities.

It also helps maintain the internal stability of the filter structure, supporting continuous and consistent filtration performance.

Ion Exchange Resin

The ion exchange resin helps reduce hardness-related substances in water and minimizes scale formation.

This function contributes to improved water taste and helps protect dispenser components from excessive mineral deposits.

Daily Usage and Maintenance Notes

To maintain the filtration performance of the 12L Mineral Activated Carbon Filter Bottle, users should follow these recommendations:

• Replace the filter element according to local water quality and actual usage frequency.

• Rinse the filter element before first use to remove possible filtration material residue.

• Keep the product away from direct sunlight and high-temperature environments.

• Store and use the bottle in a clean, dry and ventilated area.

• Regular maintenance helps maintain stable filtration performance and extends service life.

FAQ

Q: What water dispenser is compatible with the 12L Mineral Activated Carbon Filter Bottle?

The filter bottle is designed for use with top load water dispensers. Buyers should confirm the dispenser structure and connection design before selecting the suitable model.

Q: What impurities can this filter bottle help reduce?

The composite filtration system helps reduce sediment, residual chlorine, odors and certain impurities while improving overall water taste through activated carbon adsorption and multi-stage filtration.

Q: Does the filter bottle add minerals to purified water?

Yes. The mineral red and white balls inside the composite filter element release trace mineral elements such as calcium and magnesium during the filtration process.

Q: How often should the filter element be replaced?

Replacement frequency depends on local water quality, daily consumption and usage conditions. Regular replacement helps maintain stable filtration performance.
