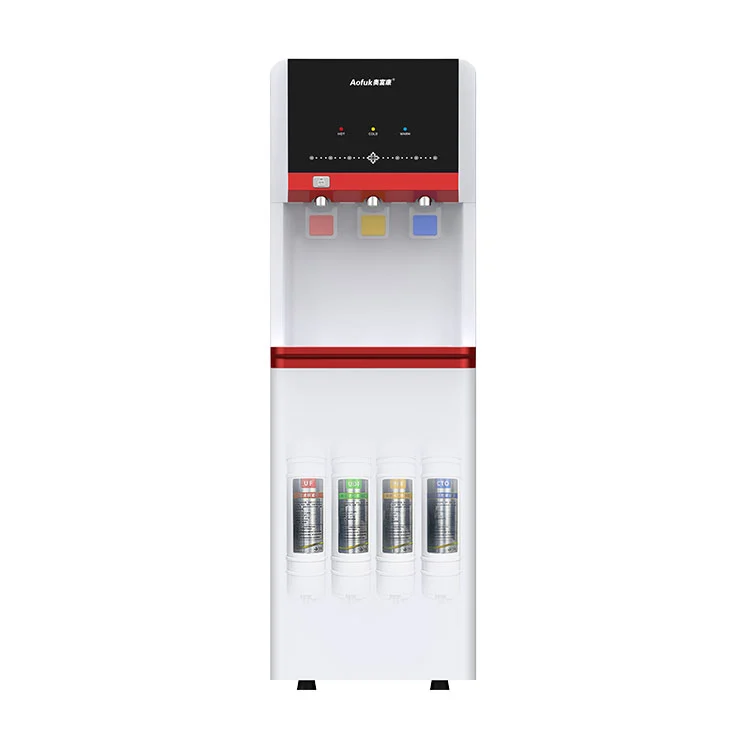

Compressor Cooling RO Water Dispenser

Product Parameter

The specifications below are measured under standard laboratory conditions. Voltage and plug type can be adjusted to meet your local requirements for bulk orders.

Product Feature

RO Filtration & Daily Output

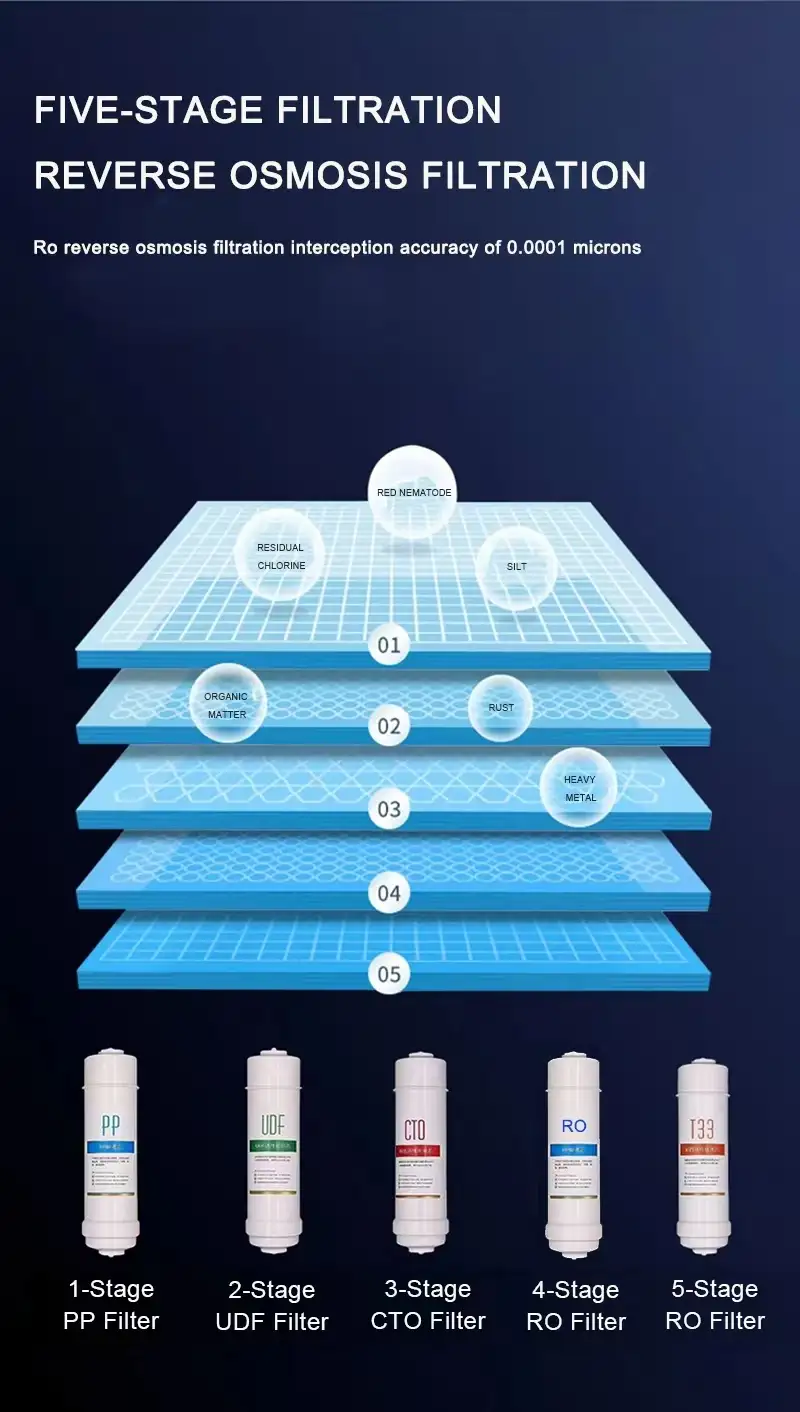

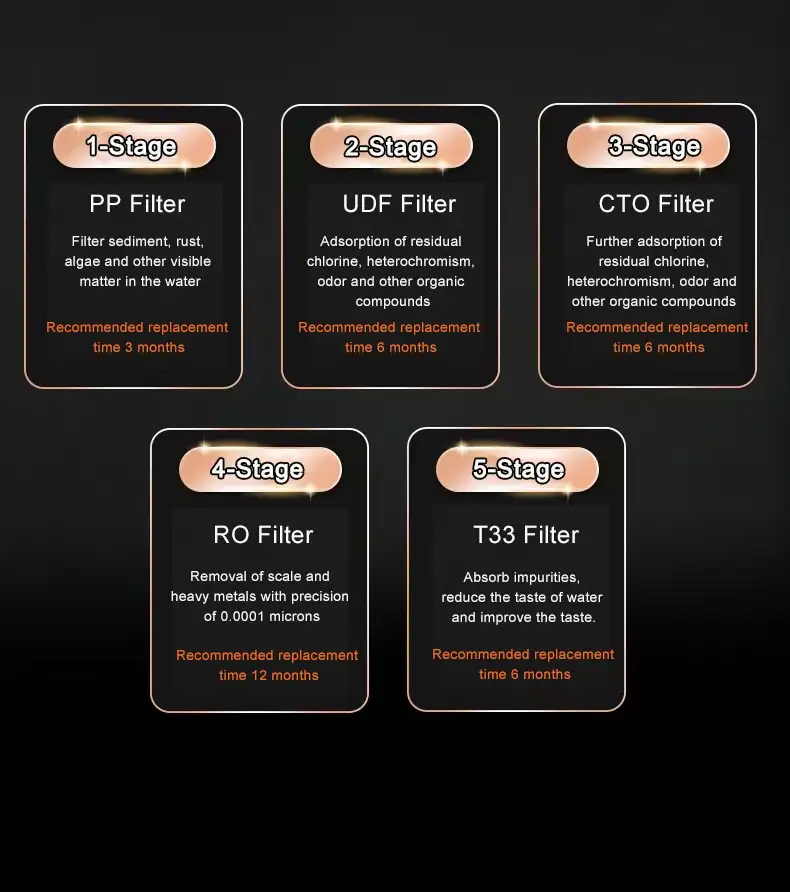

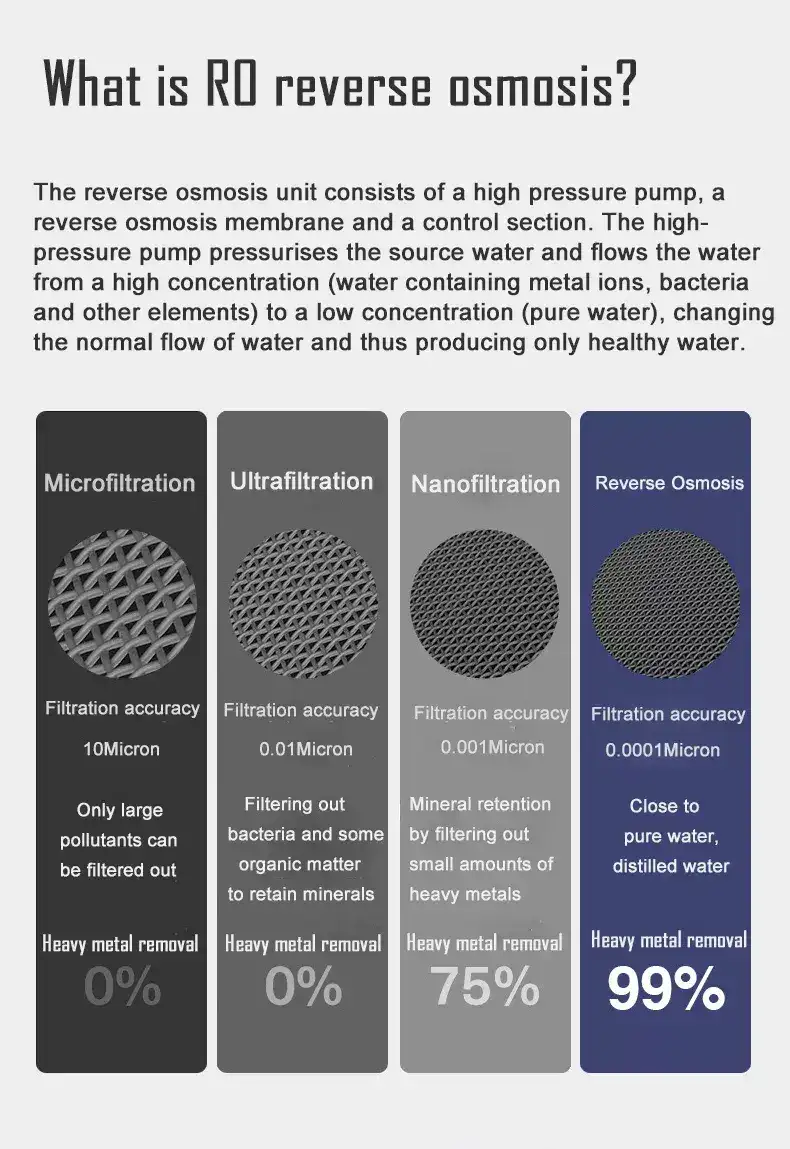

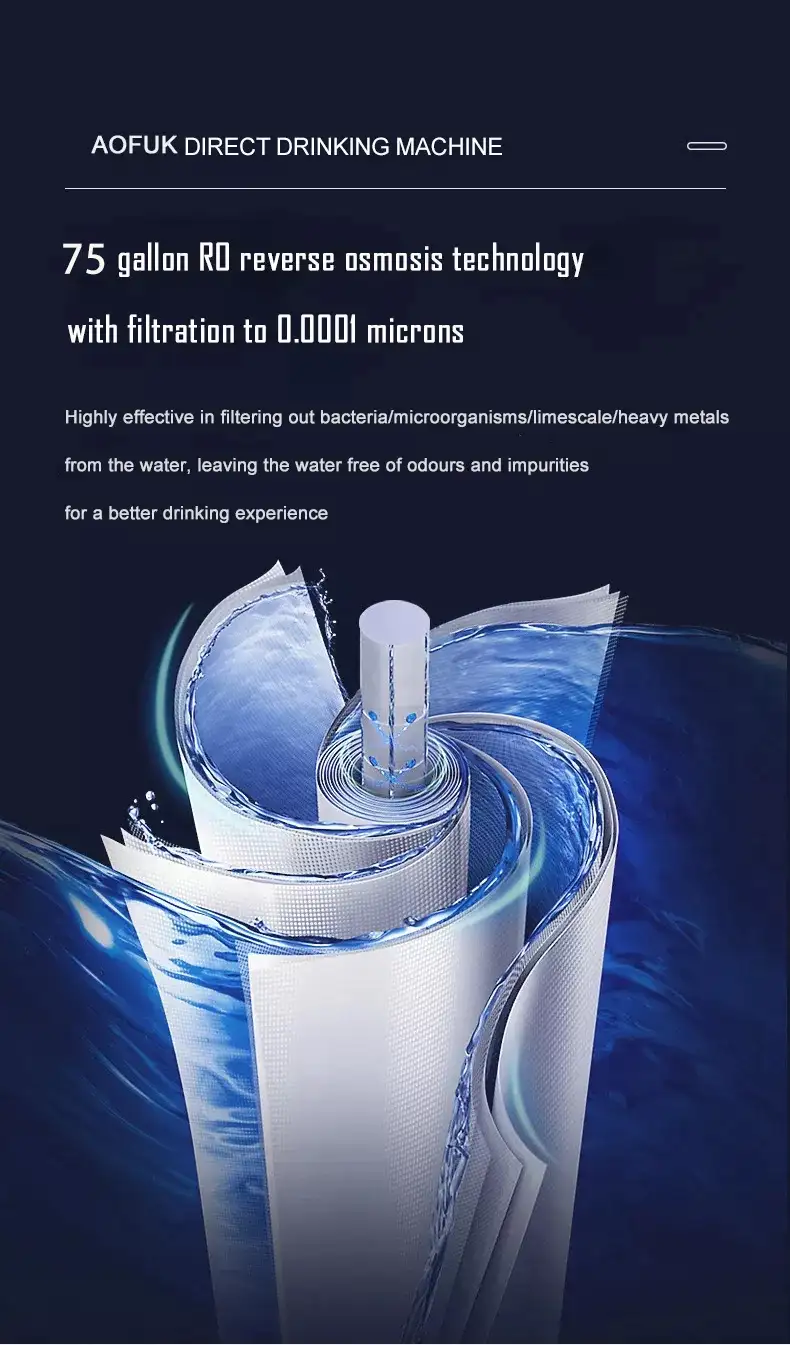

The AFK-1707 uses a 75-gallon RO membrane as the core filtration stage, supported by PP cotton, CTO activated carbon, UDF activated carbon, and a post T33 taste adjuster. Under standard municipal water pressure, the system produces approximately 284 liters of purified water per day. This output supports continuous dispensing during peak hours—lunch service in a canteen, back-to-back breaks in a school, or all-day use in a hospital waiting area—without requiring users to wait for the tank to refill.

Compressor Cooling & Independent Heating

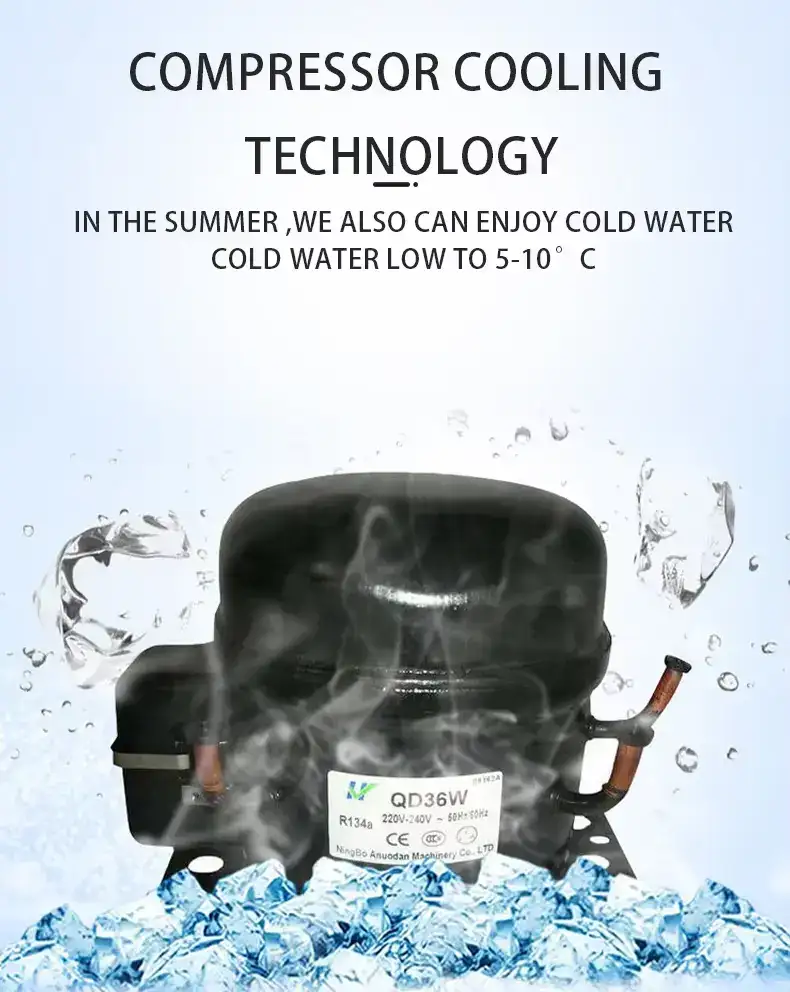

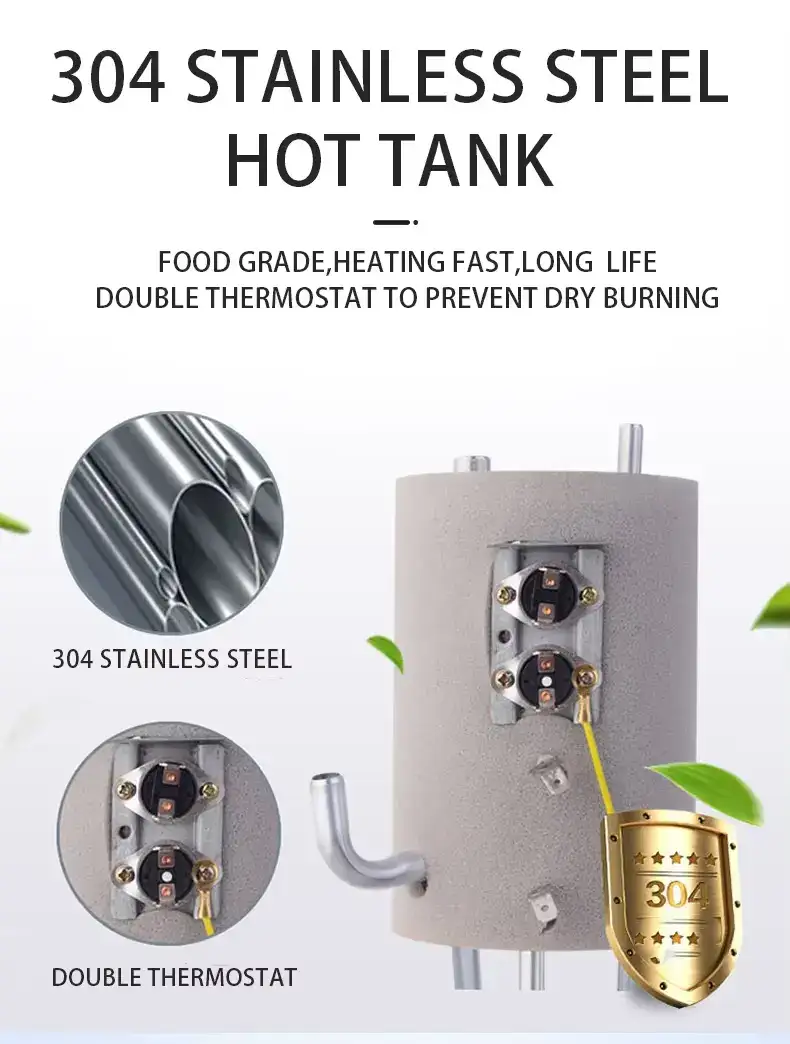

Cooling is delivered by a hermetic compressor system that brings water temperature down to 5-10℃ and maintains this range even during frequent dispensing cycles. Hot water is supplied through a separate 550W heating tank with a capacity of 5 L/h, reaching 85-95℃. Because the hot and cold circuits operate independently, drawing a large volume of chilled water does not temporarily weaken the hot water output, and vice versa. This separation is particularly useful in commercial settings where both hot beverages and cold drinking water are needed simultaneously.

Push-Button Operation & Safety

Water is dispensed through push-button faucets positioned above the drip tray. A single press starts the flow; releasing the button stops it instantly. This design reduces the number of steps required to fill a cup and minimizes the surface area touched by multiple users. A child safety lock on the hot water faucet prevents accidental activation. These features address practical concerns in shared environments such as offices, clinics, and catering areas.

Installation & Routine Maintenance

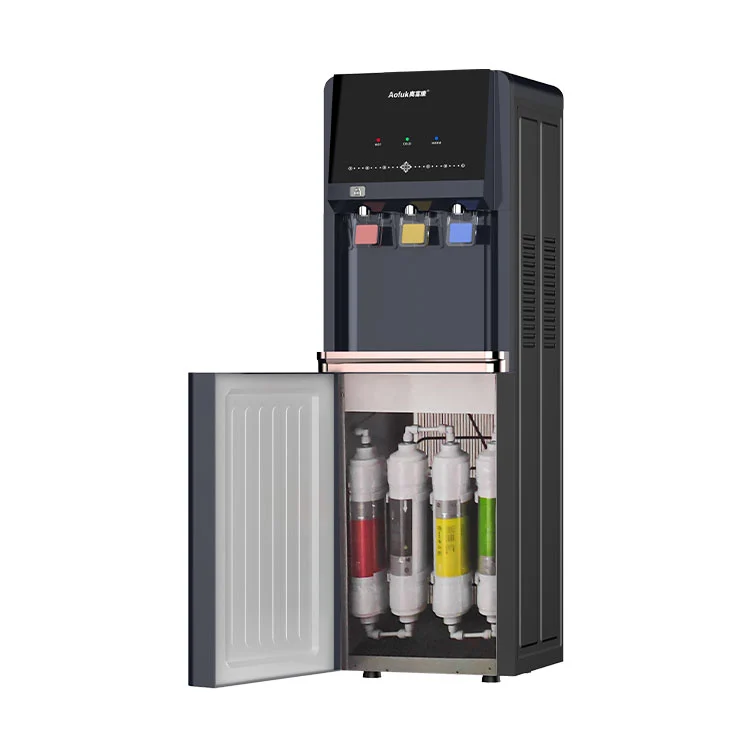

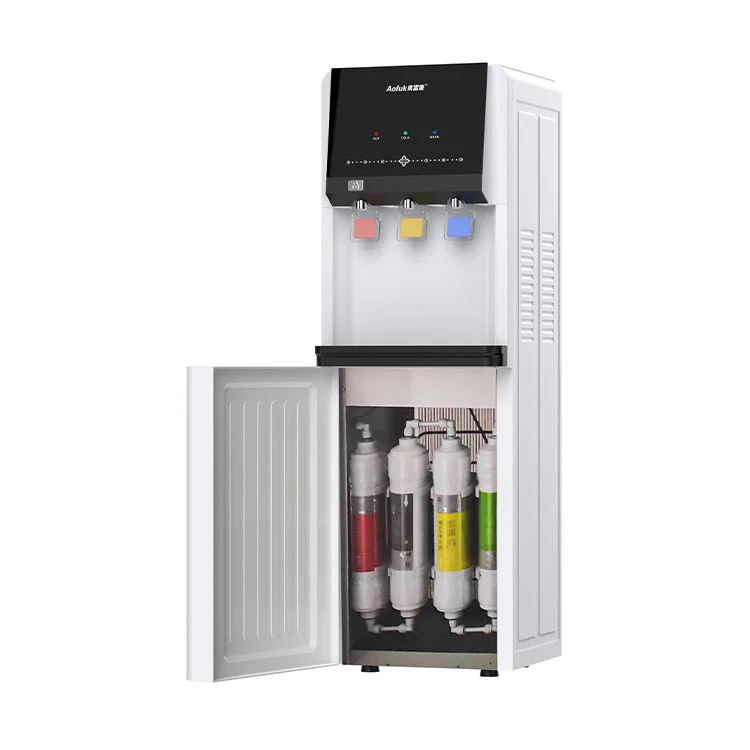

The unit operates as a top-fill model with an internal raw water tank, so no fixed plumbing connection is needed. The chassis measures 310 × 315 × 960 mm, and all serviceable components—including the filtration compartment—are accessible from the front or top panels without specialized tools. Filter replacement follows the standard 5-stage sequence, and the cartridge housing opens by hand. We recommend cleaning the side ventilation grilles and condenser area every 6-12 months depending on the operating environment to maintain cooling efficiency.

Factory Certifications & Quality Control

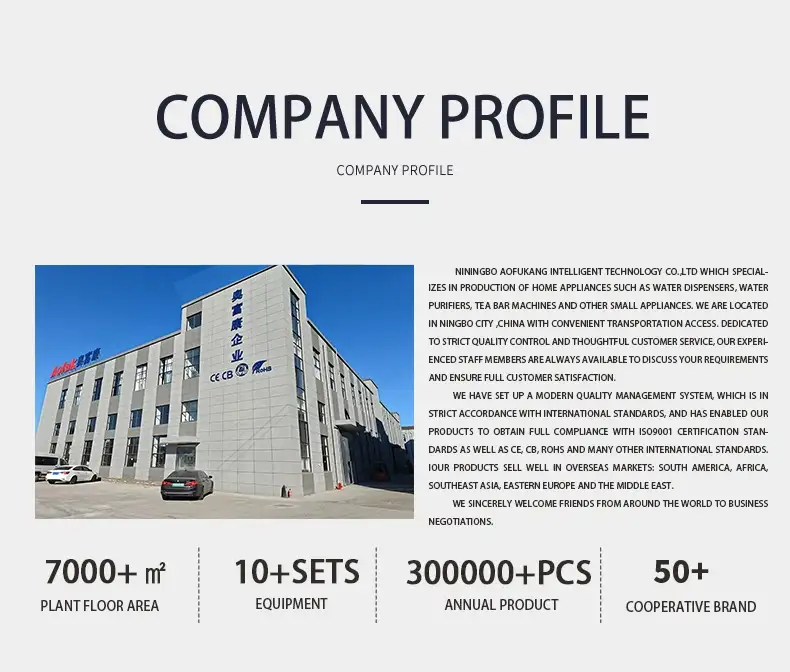

The AFK-1707 is assembled in our Cixi City production base, which spans 7,153 square meters and houses dedicated lines for water dispensers and purification equipment. The certifications shown below are held by the factory and apply to this product series.

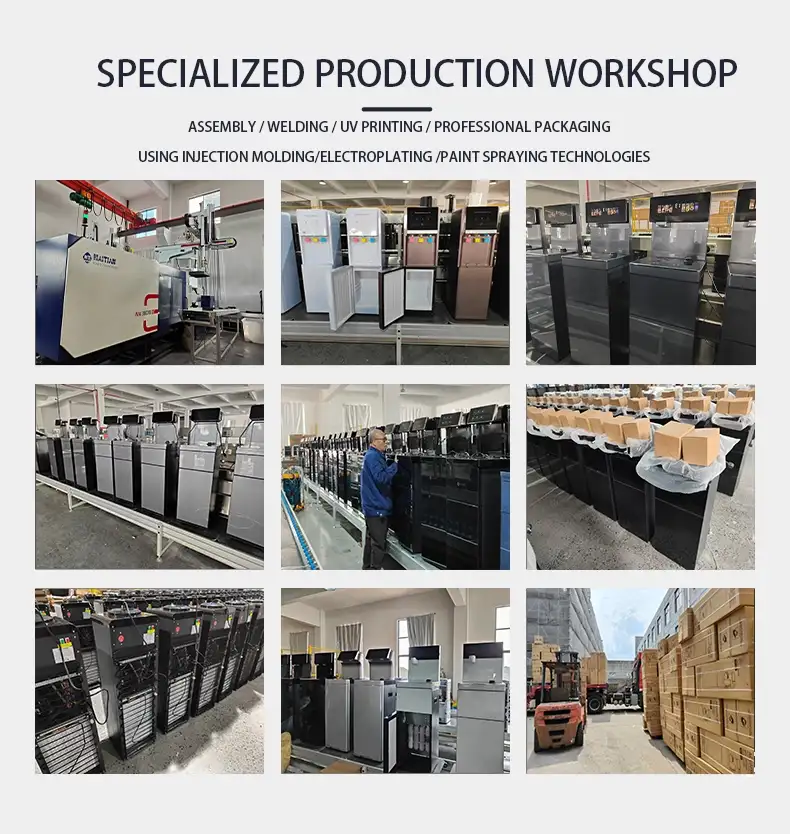

The facility operates 6 assembly lines with an annual production capacity exceeding 300,000 units across all categories. An in-house injection molding workshop and mold center allow us to control component quality directly and shorten lead times. We accept OEM and ODM orders for custom voltage configurations, panel designs, and packaging artwork.
