Glass Door Tea Bar Machine Water Dispenser

To meet the demands of the global market, Ningbo Aofukang Intelligent Technology Co., Ltd. provides flexible and efficient OEM customization services for the Glass Door Tea Bar Machine Water Dispenser. We tailor products in line with voltage standards, local usage habits, functional configurations and appearance requirements of different countries and regions. The company supports customers in customizing brand logos, product specifications and function modules of the glass door tea bar machine water dispenser, fully satisfying the diversified needs of overseas buyers, brand operators and various channel customers.

Send Inquiry

Product Description

The Aokangfu AFK-8849 Glass Door Tea Bar Water Dispenser offers five precision temperature presets (40–100°C) and compressor cooling (5–10°C), all housed behind an elegant tempered glass door that provides dustproof protection and a premium look. With remote control, built-in storage, child lock, and 1350W rapid heating, it delivers convenience and safety for any home or office. CE, CB, RoHS, and ISO9001 certified, and backed by 10+ years of manufacturing experience, we support OEM/ODM and bulk orders.

Product Characteristics

Tempered Glass Showcase Door – Offers a clear, elegant view of the internal kettle while providing effective dustproof and insect-proof protection. The glass is easy to clean and resists yellowing over time.

5 Preset Temperature Modes – Tailored for different beverages: 40°C (formula), 60°C (honey), 85°C (green tea), 100°C (black tea/coffee), and Room Temp. Accuracy is maintained within ±2°C.

Compressor Cooling System – Delivers 5–10°C cold water at 2.0L/h, maintaining consistent performance even in ambient temperatures up to 38°C — ideal for warm climates.

Full-Function Remote Control – Operate power, temperature selection, dispensing, heating, and cooling from up to 5 meters away. No need to interrupt meetings or rise from your seat.

Built-in Storage Cabinet – A discreet, sealed compartment for storing cups, tea leaves, coffee sachets, or filters — keeps your countertop organized and your essentials within arm's reach.

Child Safety Lock – Prevents accidental hot water dispensing and unintended setting changes with a simple long-press activation.

Rapid 1350W Heating – Delivers freshly boiled water instantly upon dispensing, eliminating long wait times.

Product Parameter

Model	AFK-8849
Water temperature	Hot/warm/cold
Water spouts	2
With Child lock	Yes
Cooling method	Compressor cooling
Rated voltage/frequency	220-240V 50/60Hz
Heating Power/capacity	1350W / 8L/h (50‑100℃)
Cooling Power/capacity	90W / 2.0L/h (5‑10℃)
Product Dimension	355×330×1100mm
Packing Dimension	395×375×840mm
Package	5-Layers Brown Carton Box
Load quantity	550pcs / 40HQ

Note on Packing: The compact packing height (840mm vs. product height 1100mm) indicates that the glass door and main body are packed separately with protective foam to ensure safe transportation – minimal assembly required upon arrival.

Glass Door Tea Bar Machine Water Dispenser

Multi-Stage Temperature Control – Unlocking the Perfect Cup

The AFK-8849 Glass Door Tea Bar Water Dispenser's precision temperature system is engineered around a simple truth: different beverages demand different temperatures. With accuracy calibrated to ±2°C, each preset is optimized for a specific purpose:

40°C – Gentle warmth that preserves the nutritional integrity of baby formula and is comfortable for sensitive palates.

60°C – The ideal temperature for dissolving honey, lemon, and herbal infusions without destroying their beneficial properties.

85°C – The "golden temperature" for green and white teas, preserving delicate antioxidants and floral aromas while avoiding the bitterness that comes with boiling water.

100°C – Full rolling boil for black tea, pu'er, oolong, and coffee — ensuring complete extraction of flavors, tannins, and caffeine.

Room Temp – Instant ambient water for direct drinking or mixing with cold beverages.

Unlike tank-type dispensers that hold water at a single temperature and reheat it repeatedly, the AFK-8849's instant heating module activates only on demand, delivering freshly heated water for every pour. This not only preserves the pure taste of your water but also reduces energy waste.

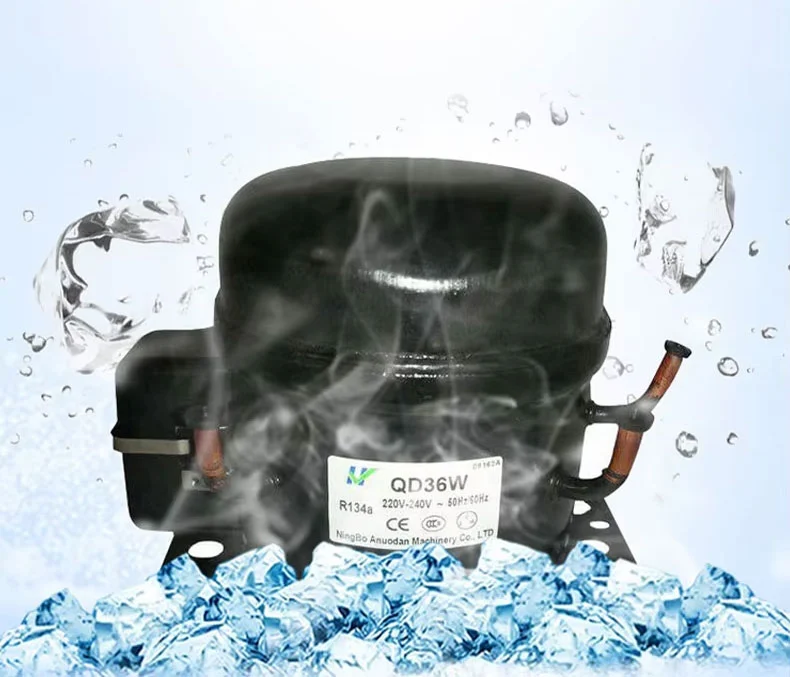

Compressor Cooling – Reliable Cold Performance in Any Climate

While the multi-stage heating system caters to hot beverage enthusiasts, the compressor cooling unit ensures that those who prefer cold water are equally well served. The AFK-8849 employs a high-efficiency compressor — the same technology used in household refrigerators — to achieve rapid, consistent cooling:

Performance Metric	AFK-8849 (Compressor)	Typical Semiconductor Coolers
Cooling capacity	2.0L/h (5–10°C)	0.8L/h (5–10°C)
Performance in 38°C ambient	Stable	30–40% efficiency loss
Typical service life	8–10 years	3–5 years
Noise level	≤42 dB	≤35 dB

In practical terms, this means the Glass Door Tea Bar Water Dispenser delivers reliably cold water even during the hottest summer months or in warm-climate regions like the Middle East and Southeast Asia — scenarios where semiconductor-based units often struggle to maintain temperature. The compressor's robust construction also ensures a longer operational life, making it a sound investment for high-traffic environments.

Glass Door Tea Bar Machine Water Dispenser

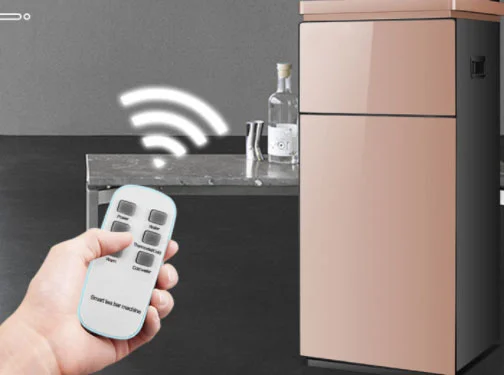

Remote Control – Convenience Without Compromise

One of the most distinctive features of the AFK-8849 is its full-function infrared remote control. This is not a gimmick; it addresses real-world usability challenges:

For Office Environments: Meeting participants can adjust water temperature and dispense drinks without interrupting the flow of discussion — no need to stand up or walk to the machine.

For Elderly Users: Those with limited mobility or joint issues can operate the dispenser comfortably from their seat, reducing the risk of spills or strain.

For Parents: Prepare baby formula at 40°C from across the nursery without disturbing a sleeping infant.

For Busy Kitchens: Start heating water while you finish food preparation, so it's ready exactly when you need it.

The remote operates effectively up to 5 meters with a clear line of sight, and the button layout is intuitive, with large, clearly labeled icons that are easy to read and press.

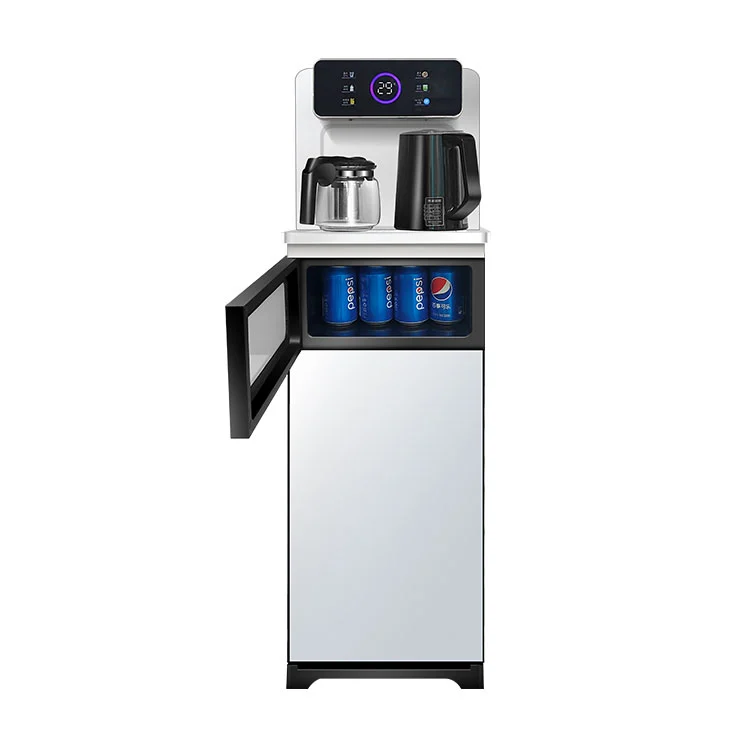

Built-in Storage Cabinet – Form Meets Function

This Glass Door Tea Bar Machine Water Dispenser goes beyond simple water dispensing by incorporating a thoughtfully designed storage cabinet into its footprint. This feature transforms the unit from a single-purpose appliance into a complete hydration station:

Hygienic Storage: The cabinet's sealed doors protect contents from dust, moisture, and insects — a significant advantage in warm, humid climates.

Ample Capacity: With internal dimensions of approximately 300×280×200mm, the cabinet can comfortably hold 4–6 cups, a tea canister, and a bag of coffee beans or filters.

Neat Aesthetic: By consolidating frequently used items inside the dispenser, the cabinet eliminates countertop clutter, contributing to a clean, professional appearance.

Accessibility: Smooth hinges and a magnetic closure ensure quiet, easy opening and closing, even when your hands are full.

This integrated design is particularly valued in compact kitchens, office pantries, and tea rooms where counter space is at a premium.

Glass Door Tea Bar Machine Water Dispenser

Real-World Performance

The AFK-8849's performance has been validated through continuous monitoring in real-world environments across diverse markets:

Rapid Heating Response: The 1350W instant heating module delivers boiling water within 3 seconds of activation. During morning peak hours (8:00–9:00 AM), this translates to uninterrupted service for up to 20 consecutive cups without significant temperature drop — verified in our Singapore partner showroom.

Compressor Reliability in Heat: In Dubai summer conditions (38°C ambient), the compressor maintained consistent 5–10°C cold water output, while competing semiconductor units showed a 40% efficiency drop. This data was collected over a 30-day continuous operation test.

Remote Control Durability: After 10,000 press cycles in lab testing, the remote transmitter showed zero signal degradation — equivalent to more than 8 years of daily use.

Glass Door Impact Resistance: The tempered glass panel passed the 1-meter falling ball impact test (per GB/T 9963 standard) with no cracking, ensuring long-term safety and durability.

FAQ

Q: What makes the glass door different from regular plastic doors?

A: The AFK-8849 uses tempered safety glass, which is more scratch-resistant, impact-resistant, and easier to clean than plastic. It also offers a premium, transparent view of the internal kettle, allowing you to monitor water levels and operation at a glance. Unlike plastic, glass does not yellow or become cloudy over time, maintaining its clarity and elegance for years.

Q: Can I operate the dispenser without the remote control?

A: Yes. The AFK-8849 features a fully functional touch control panel on the unit itself. All settings — temperature selection, dispensing, heating, cooling, and child lock — can be accessed directly on the machine. The remote control is an added convenience, not a requirement.

Q: What is the effective range of the remote control?

A: The infrared remote operates reliably up to 5 meters (approximately 16 feet) with a direct line of sight to the front panel of the unit. For most living rooms, offices, and tea rooms, this provides full coverage from any seated position.

Q: Does the built-in storage cabinet require assembly?

A: The cabinet comes fully assembled and integrated into the unit. Simply open the doors and start using it — no tools or assembly required. The storage compartment is ready to hold cups, tea canisters, coffee sachets, or filters immediately upon unpacking.
