3 Taps Bottom Load Water Dispenser

Product Parameter

Operation & Key Design Features

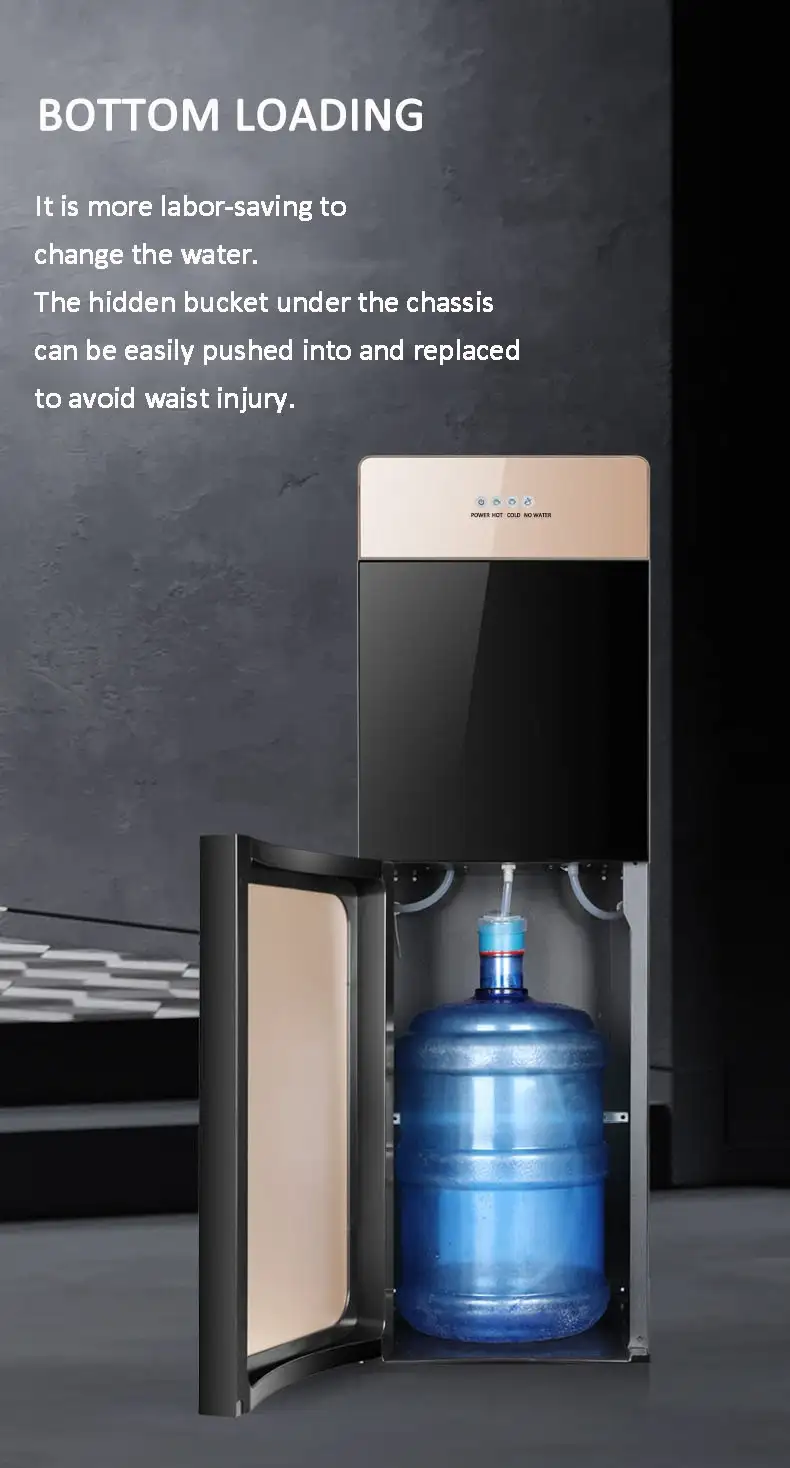

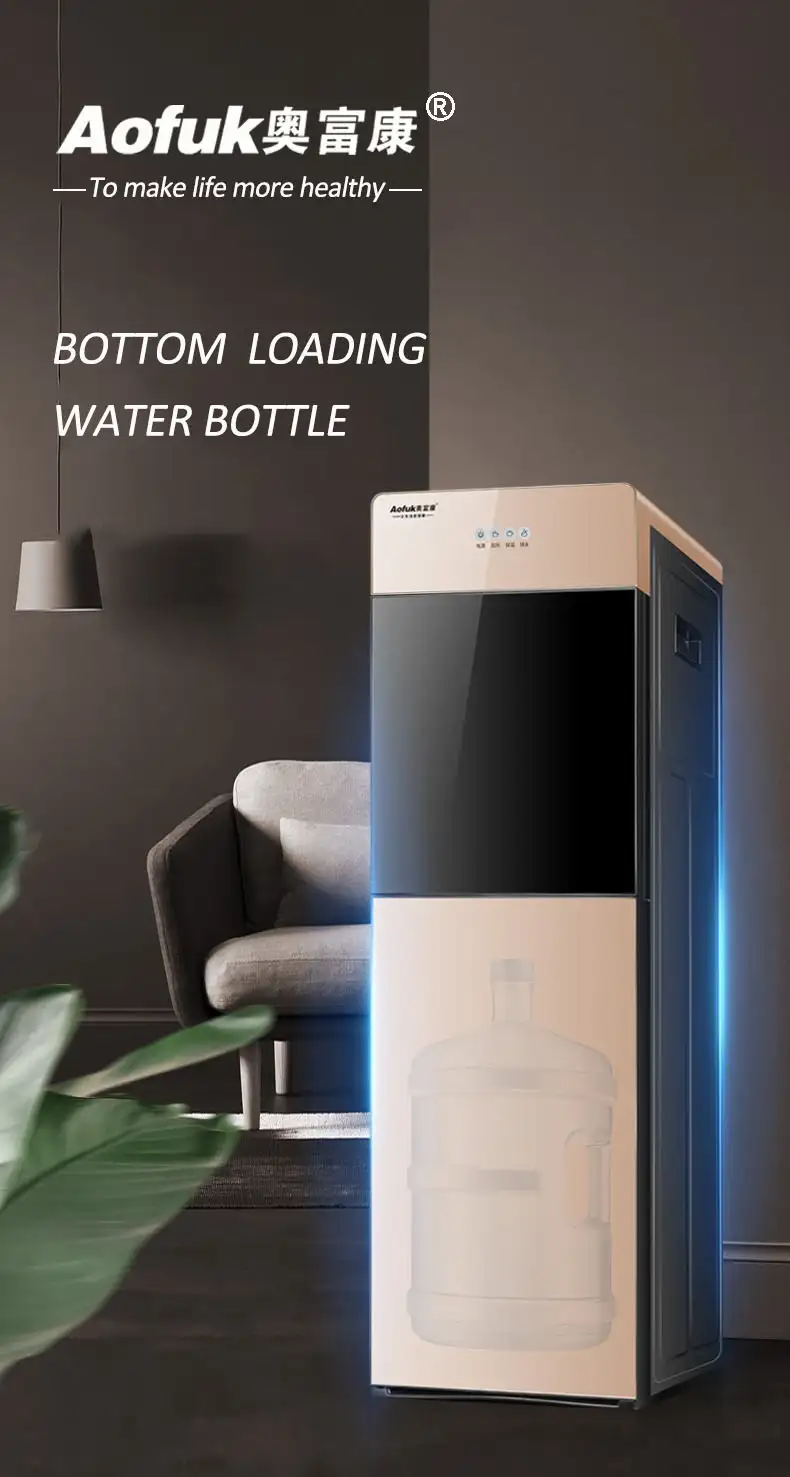

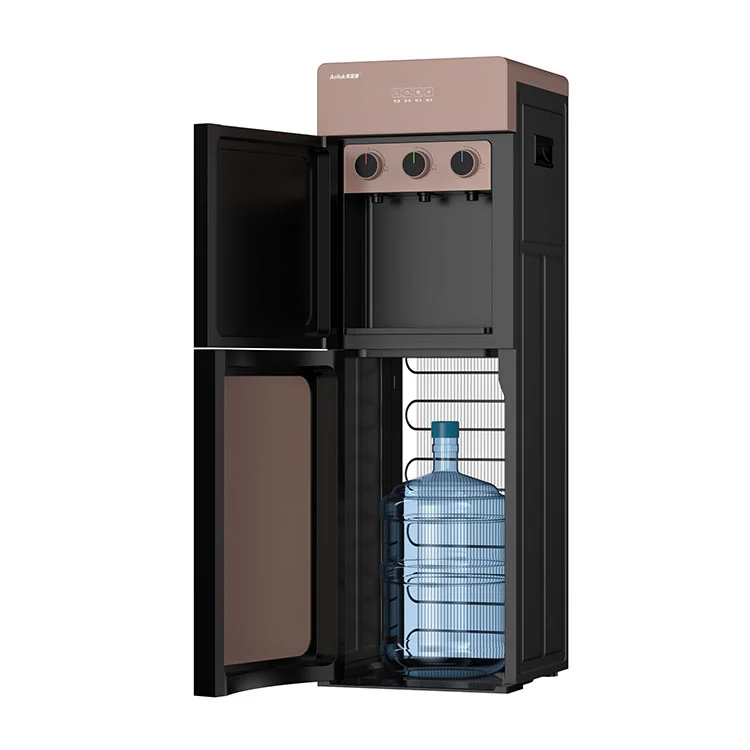

Bottom‑Loading Mechanism

The water bottle is housed in a lower compartment accessed through a front glass door. A small internal pump draws water from the bottle to the hot and cold tanks. This design removes the physical effort of lifting a full 5‑gallon bottle to shoulder height or above, which is a common limitation of top‑load units. The bottle sits on a recessed base inside the cabinet; replacement involves opening the door, sliding out the empty, and sliding in a full bottle—no lifting above waist level is required.

Three‑Temperature Output & Compressor Cooling

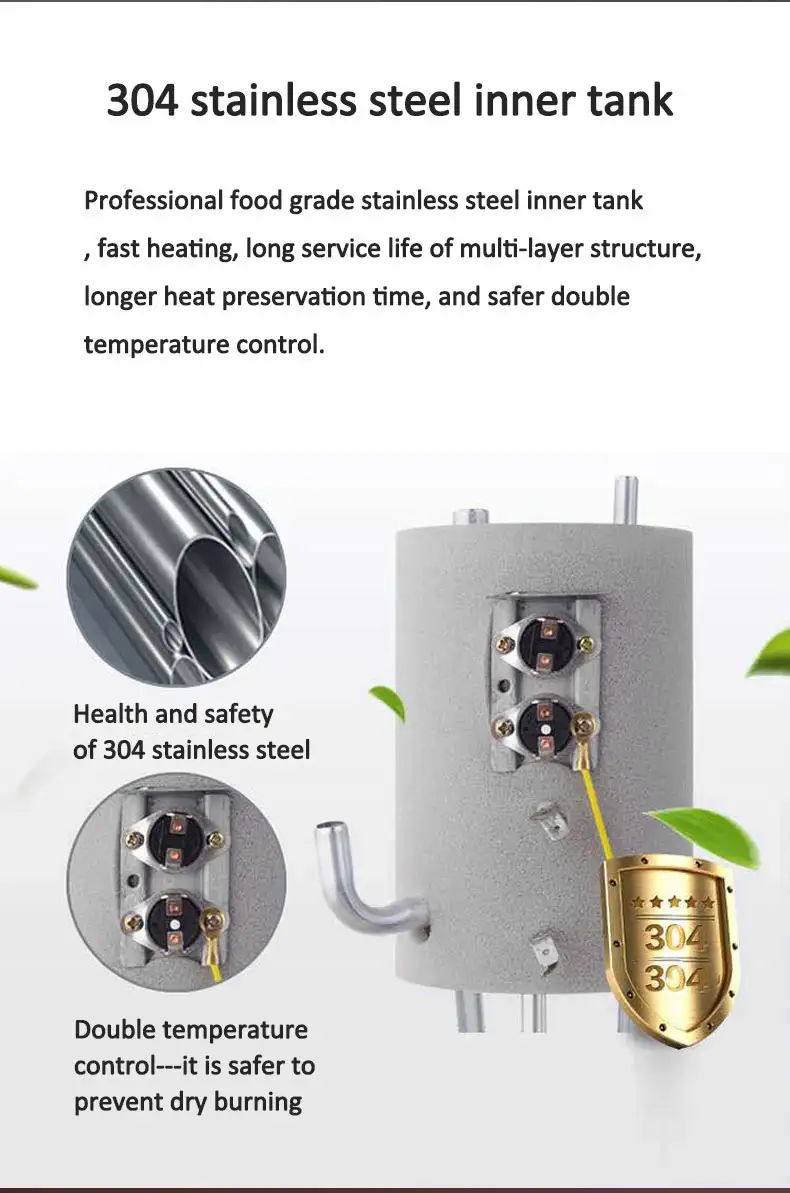

Three separate faucets dispense hot (85–95 °C), warm (ambient‑range), and cold (5–10 °C) water. The cold water circuit uses a hermetic compressor that cycles based on a thermostat, maintaining temperature stability even in warm ambient conditions. The hot water tank is made from 304 stainless steel and is protected by both a float switch and an electronic temperature controller to prevent dry‑burning. The warm water outlet draws from a separate unheated reservoir, allowing simultaneous dispensing of all three temperatures without cross‑contamination.

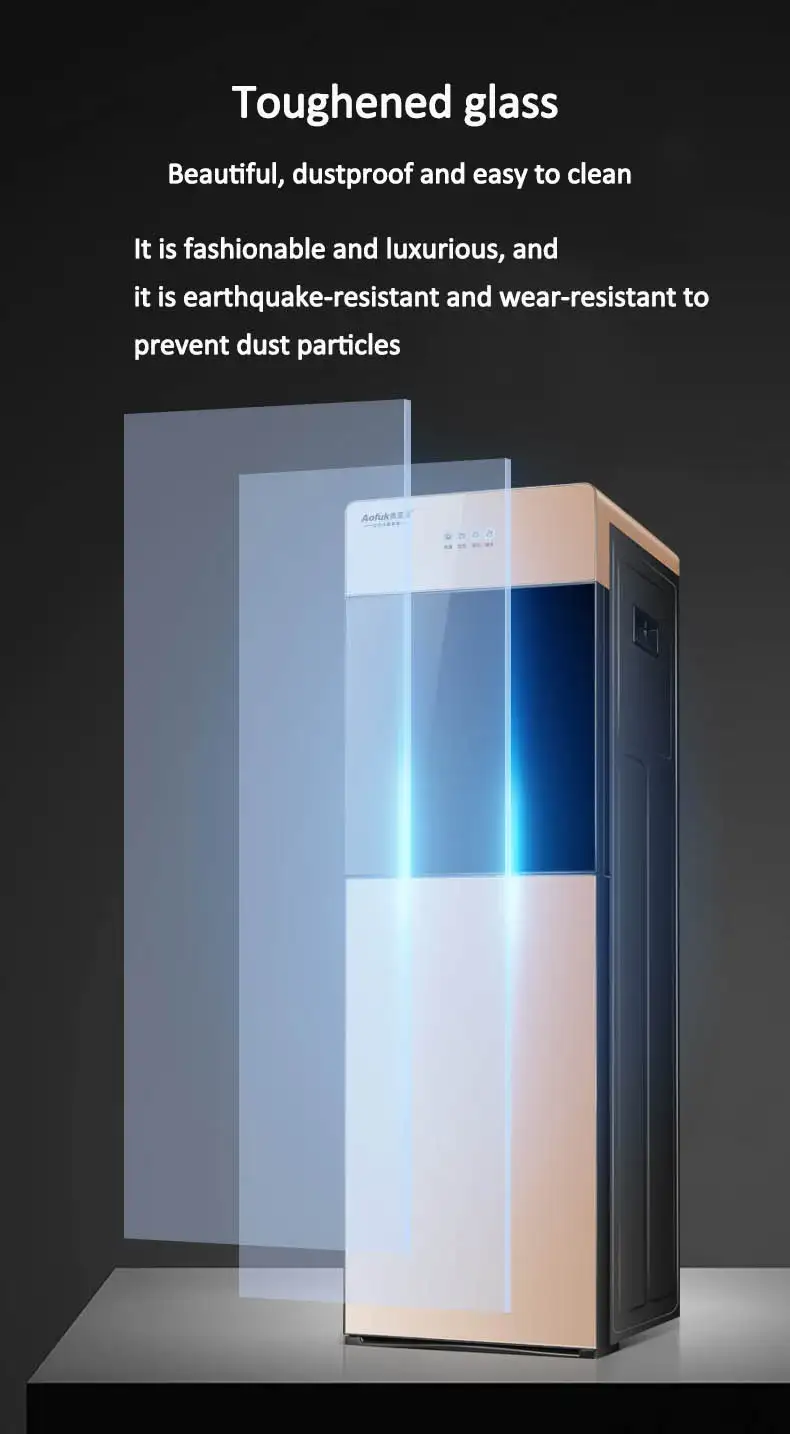

Glass Door & Ergonomic Height

The front cabinet is fitted with a tempered glass door that allows users to see the water bottle level without opening the compartment. The door uses standard hinges and a magnetic catch. The overall unit height of just over 1 metre positions the three faucets at approximately 90 cm from the floor. This height falls within the typical counter‑level range, meaning adults and older children can fill a cup or bottle without stooping. A detachable drip tray sits below the spouts and slides forward for rinsing.

Where This Dispenser Is Used

The AFK-2088-3 has been shipped to buyers serving households, office pantries, school common rooms, and small commercial spaces. In a home kitchen or living area, the bottom‑load design is preferred by users who find overhead bottle lifting difficult. In office break rooms, the three‑tap layout allows simultaneous access to hot water for tea or instant coffee and cold water for drinking, reducing queues during peak break times. Schools and training centres place the unit in staff rooms or corridor alcoves where the 1‑metre height suits both adults and older students. The appliance requires only a standard power outlet and a 3‑ or 5‑gallon water bottle; no fixed plumbing or drainage connection is needed.

Product Gallery

Production Compliance & Certifications

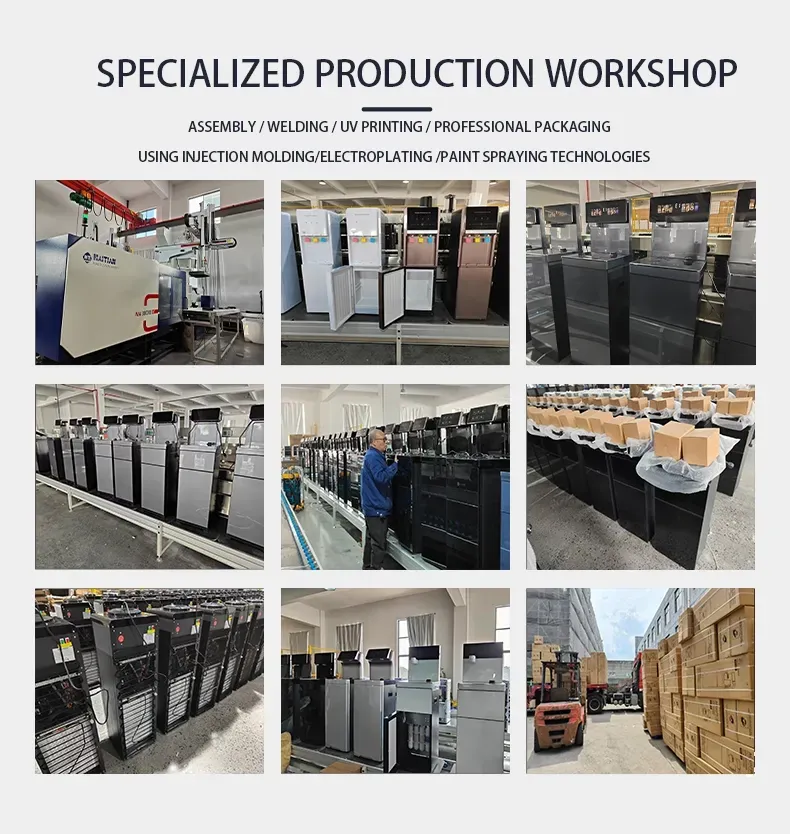

Aofukang produces the AFK-2088-3 in a dedicated assembly line within the Cixi factory. Each completed unit is checked for water circuit sealing, electrical safety (ground resistance and insulation integrity), compressor cooling performance, and heating cycle accuracy. The compliance records below are maintained for this model.

The manufacturing site covers 7,153 m², runs 6 assembly lines, and delivers an annual output above 300,000 units. In‑house plastic injection, metal fabrication, and a mould workshop support consistent component quality. For brand buyers, OEM modifications—panel colour, logo placement, voltage setting, packaging—are available with a 100‑unit minimum order quantity.
