High Size Bottom Load Water Dispenser

Ningbo Aofukang Intelligent Technology Co., Ltd. attaches great importance to product quality and safety standards. Our products have passed a number of internationally authoritative certifications such as CB and CE, and production is strictly managed in accordance with the ISO9001 quality management system throughout the whole process. From raw material procurement, parts processing to finished product assembly and factory inspection, standardized operation is implemented in every link to ensure stable product performance and safe, reliable use. This High Size Bottom Load Water Dispenser features a heightened 1005MM body design for more comfortable water dispensing without bending over. The bottom-loading structure allows easy and labor-saving bottle replacement. Equipped with a closed dust-proof door, it looks elegant and hygienic. With efficient cooling and heating functions, stable performance and multiple safety protections, it is ideal for home and office use, bringing a more convenient and comfortable drinking experience.

Send Inquiry

Product Description

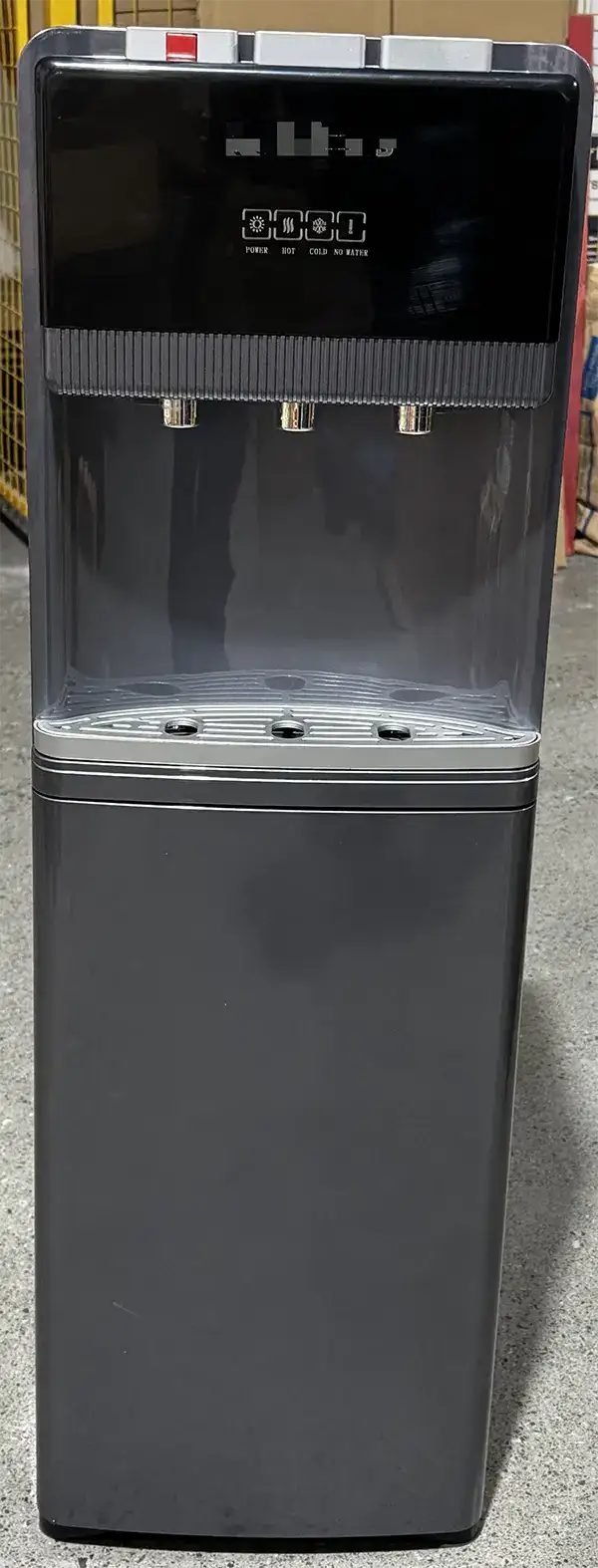

Manufactured by Ningbo Aofukang Intelligent Technology Co., Ltd. at its 7,153 m² facility in Cixi, Zhejiang, the AFK-1899 is a High Size Bottom Load Water Dispenser that positions its three faucets at a comfortable 1060 mm height. Designed for 3‑ and 5‑gallon bottles stored in a lower cabinet with a front door, it removes the physical strain of overhead lifting. Hot water is heated in a 304 food‑grade stainless steel tank to 85–95 °C (550 W, 5 L/h) with dual anti‑dry‑burning protection, while a 90 W hermetic compressor supplies cold water at 5–10 °C. The hot‑water faucet is fitted with a mechanical child lock. The unit is assembled under ISO9001:2015 procedures and carries CE, CB, and RoHS compliance documents.

Product Parameter

Model	AFK-1899
Water Temperature	Hot / Warm / Cold
Water Spout	3
Child Lock	Yes
Cooling Method	Compressor Cooling
Rated Voltage / Frequency	220-240V 50/60Hz
Heating Power / Capacity	550W / 5 L/h (85-95℃)
Cooling Power / Capacity	90W / 2.0 L/h (5-10℃)
Product Dimensions	350 × 360 × 1060 mm
Packing Dimensions	320 × 310 × 1005 mm
Package	5-Layer Brown Carton Box
Load Quantity (40HQ)	462 PCS

Internal Construction & Safety Measures

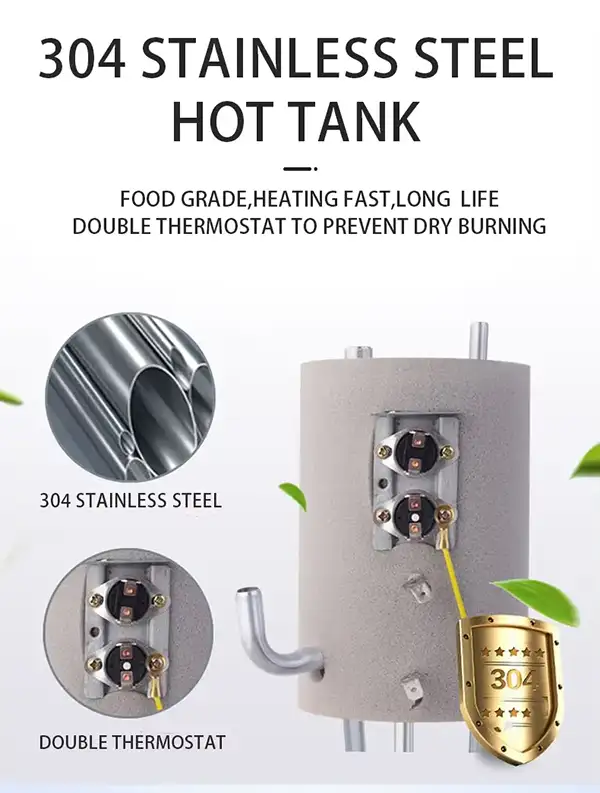

304 stainless steel hot water tank and dual protection

The hot water module features a 304 food‑grade stainless steel vessel with a polished interior that inhibits scale accumulation and bacterial growth. A 550 W heating coil raises the water temperature to 85–95 °C, delivering up to 5 liters per hour. Two independent safeguards prevent damage: a float‑actuated cut‑off linked to the water level, and a thermostat that interrupts the circuit if the temperature climbs past the safe limit. This arrangement keeps the heater from operating without water and extends the tank's working life. A separate ambient‑temperature reservoir feeds the warm‑water outlet, ensuring the three water paths remain isolated.

Cooling System & Temperature Regulation

Chilled water is delivered by a 90 W hermetic compressor connected to a fin‑and‑tube heat exchanger. The compressor runs intermittently based on a thermostat inside the cold reservoir, holding the water at 5–10 °C regardless of room temperature fluctuations. Because the cooling loop is physically separate from the heating side, simultaneous use of hot and cold faucets does not cause temperature crossover. The sealed compressor design eliminates the need for refrigerant servicing under normal domestic or office use.

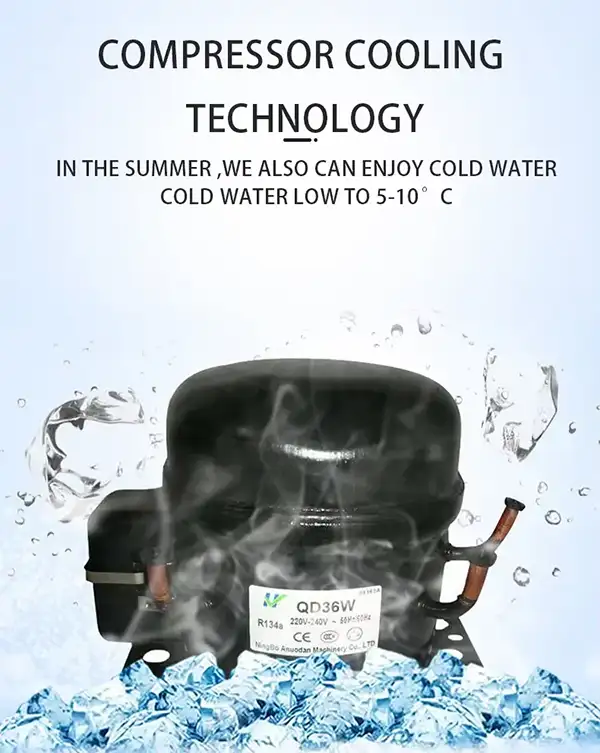

90W compressor cooling module

Bottle Storage & Cabinet Access

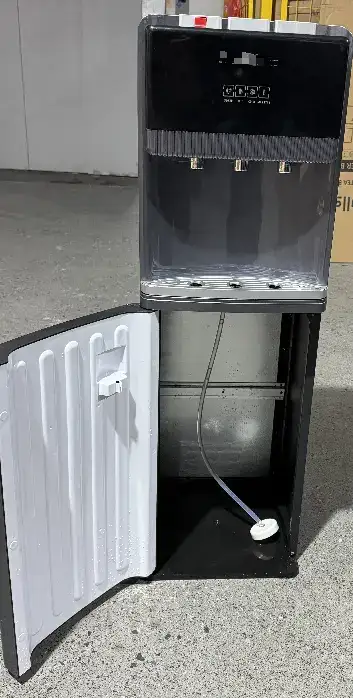

Concealed bottle cabinet behind front door

The water bottle is placed inside a front‑opening lower compartment, hidden from view behind a hinged door. A diaphragm pump transports water upward to the reservoirs; it operates for short bursts during replenishment. Swapping an empty bottle for a full one involves opening the door and sliding the bottle along the cabinet’s recessed base—no overhead lifting is necessary. The compartment fits standard 3‑ and 5‑gallon round bottles with 55 mm necks. The door is secured by a magnetic catch and can be fitted with a padlock if required.

Control Layout & Accessibility

Three piano‑key styled actuators control the water flow, each labeled for hot, warm, or cold output. The keys need a deliberate push and provide tactile resistance, which helps avoid unintentional dispensing. The hot‑water actuator includes a sliding safety tab that must be released before the key can be pressed, locking out children from the high‑temperature circuit. The 1060‑mm overall height aligns the spouts with a natural hand position for most adults, and the top surface can support a cup or small tray. A detachable drip tray beneath the outlets collects any drips and can be removed for rinsing.

Piano-key style faucet controls

Suitable Applications

The AFK-1899 is used in a range of settings where floor‑standing bottled water dispensers are preferred over plumbed‑in alternatives. In residential kitchens and open‑plan living areas, the 1060 mm height brings the faucets close to countertop level, reducing the need to bend. Small to medium office pantries benefit from the three‑temperature output and the bottom‑load design, which lets any staff member change the bottle without lifting it shoulder‑high. The dispenser also appears in school staff rooms, community centres, and clinic waiting areas, where the concealed bottle keeps the floor area looking tidy and the child lock limits access to hot water. Because it requires only a standard power socket and bottled water, it can be placed in rooms without a mains water connection.

Packaging & Logistics

Each AFK-1899 is packed in a 5‑layer brown corrugated carton with internal polystyrene cushioning that protects the unit during sea, rail, or truck freight. The packing dimensions are 320 × 310 × 1005 mm, and the gross weight is approximately 18 kg. A 40‑foot high‑cube container holds 462 units. Shipments are normally arranged FOB Ningbo or CIF to the buyer's destination port. LCL (less than container load) and sample orders by air courier are also supported. All documentation—commercial invoice, packing list, bill of lading, and certificates of origin—is provided with each consignment.

Recommended Maintenance

Routine care keeps the dispenser running consistently. The following intervals are based on normal household or office use; high‑traffic locations may require more frequent attention.

Weekly: Empty and rinse the drip tray. Wipe the exterior panels and faucets with a damp cloth.
Monthly: Check the bottle cabinet for dust or spills and wipe the base if needed. Inspect the power cord and plug for any visible wear.
Every 6 months: Flush the hot and cold water circuits with a food‑grade cleaning solution (e.g., citric acid diluted per the supplier's instructions). Run two full cycles of plain water afterward to remove any residue.
Annually: Examine the silicone tubing for cracks or discolouration. If the dispenser is used in a hard‑water area, descale the hot tank more frequently.

Spare parts including replacement keys, drip trays, door hinges, and pump assemblies can be ordered through Aofukang's after‑sales service.

Compliance & Production Information

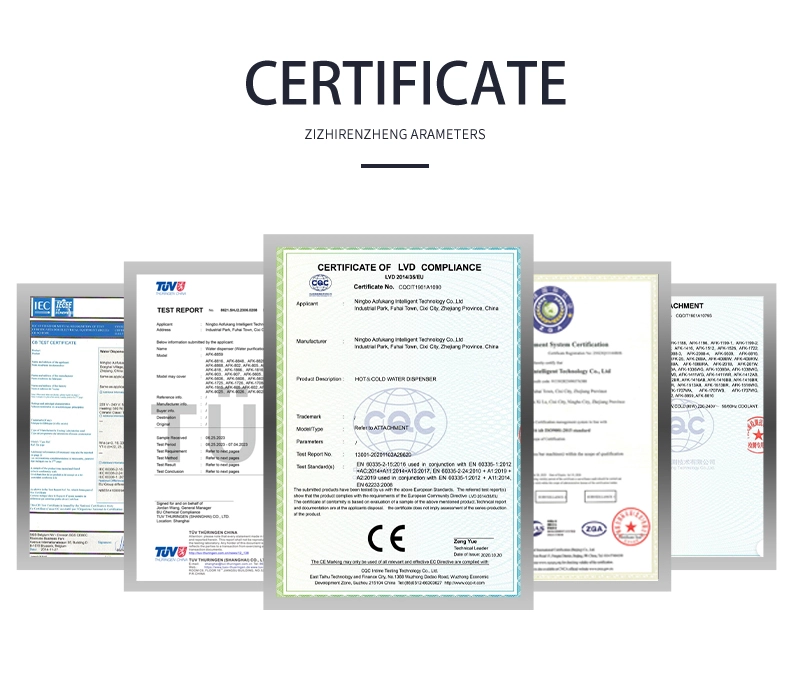

Prior to packing, every AFK-1899 passes a sequence of factory checks: water circuit sealing test, ground bond and insulation resistance measurement, cooling and heating cycle confirmation, and a visual appraisal of the exterior and controls. The conformity records displayed below are retained for this dispenser and can be furnished for import procedures.

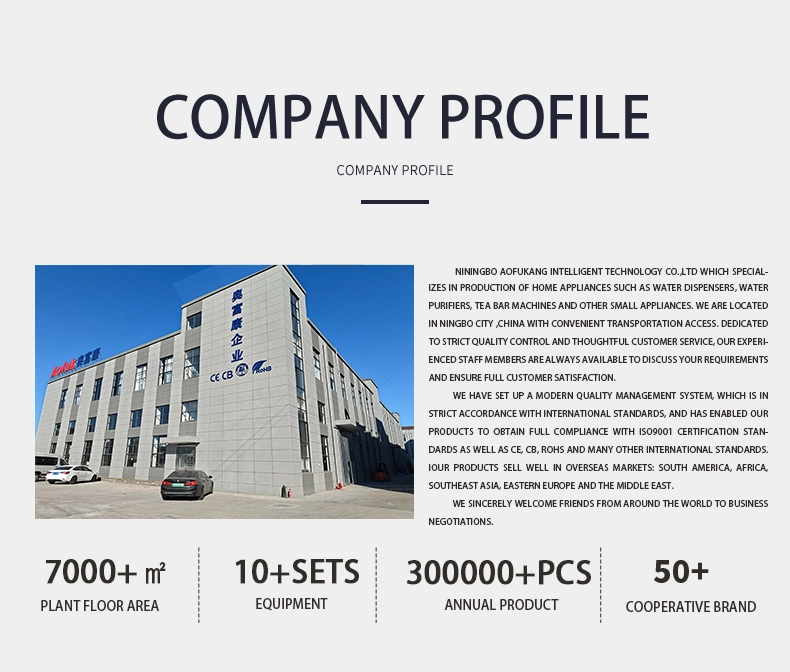

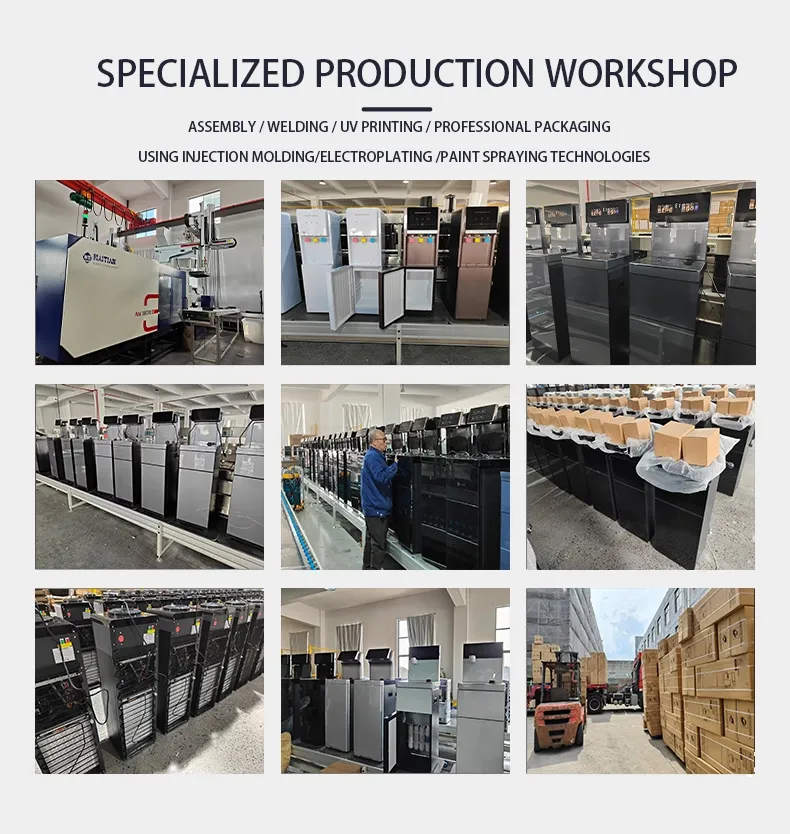

The Cixi factory occupies 7,153 m², runs 6 assembly lines, and turns out more than 300,000 units per year across all product categories. In‑house plastic injection, metal fabrication, and tool‑making provide direct oversight of component quality. Customization (logo, colour, voltage, packaging) is offered with a minimum order of 100 pieces.

Frequently Asked Questions

Q: How does the taller cabinet improve daily use compared to shorter models?

A: The 1060‑mm height places the dispensing controls roughly at countertop level, so users do not need to bend down to fill a cup or read the labels. This can be particularly helpful for taller individuals, elderly users, or anyone who prefers not to stoop repeatedly during the day.

Q: Are the piano keys more durable than push‑button faucets on other models?

A: The piano‑key mechanism uses a simple lever and spring assembly. It has fewer small moving parts than some push‑button designs, which can make it less prone to jamming over time. Replacement keys are stocked as spare parts and can be swapped without replacing the entire valve body.

Q: Can the dispenser be placed on carpet or uneven flooring?

A: The base is flat and stable, but for optimal stability the unit should sit on a level hard floor. On thick carpet, a small rigid board under the dispenser can prevent tilting. The bottom‑load cabinet door opens forward, so the bottle can be changed even if the unit is placed close to a wall on the sides.

Q: What is the typical daily electricity consumption of this dispenser?

A: Under normal household use with both heating and cooling active, the AFK-1899 consumes approximately 1.0–1.5 kWh per day. Actual consumption depends on ambient temperature and the volume of hot and cold water dispensed. The compressor cycles intermittently, and the hot tank thermostat maintains temperature without running the element continuously.
