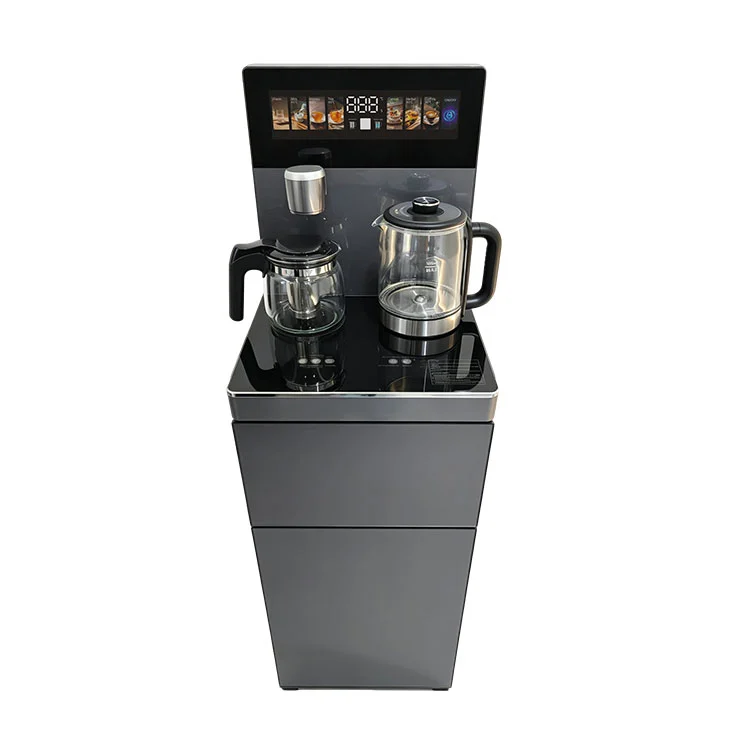

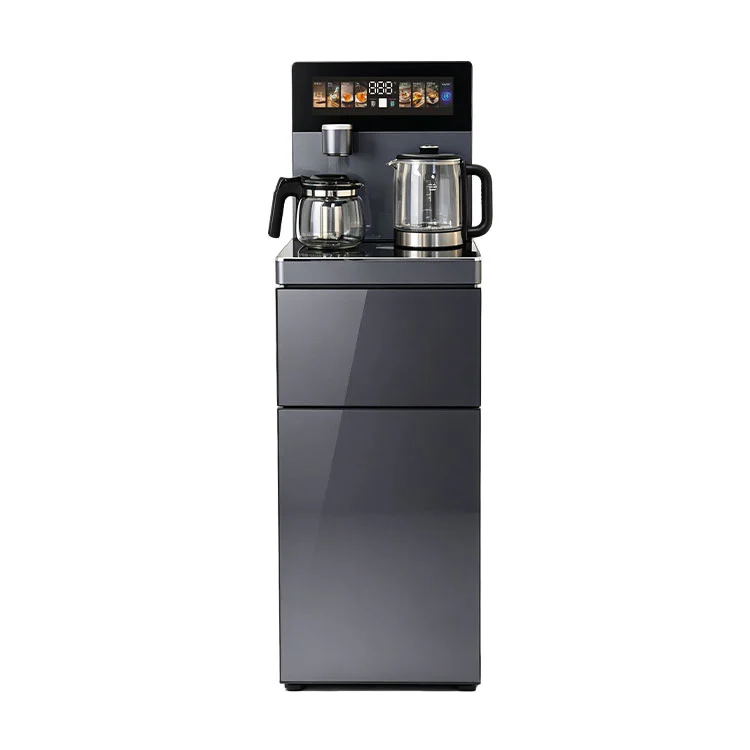

Large Screen Temperature Adjustable Tea Bar Machine Water Dispenser

Product Parameter

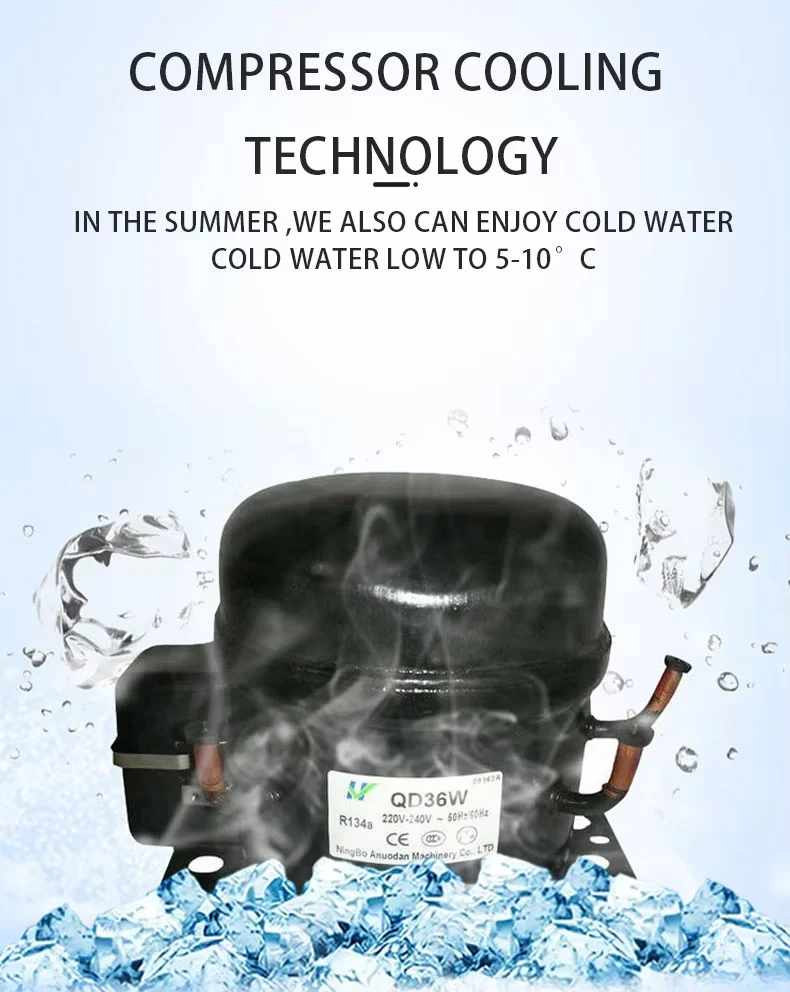

Compressor Refrigeration

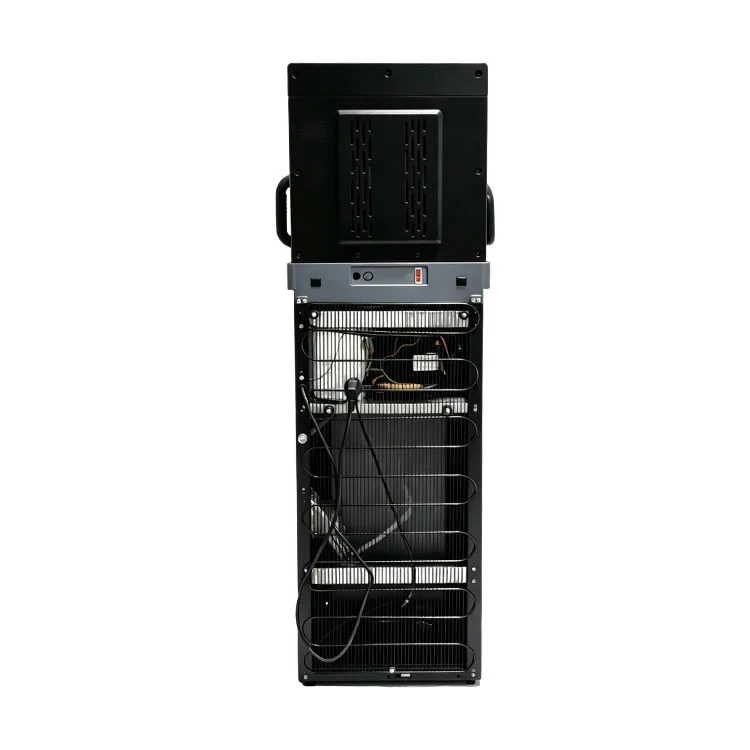

The cold‑water circuit uses a 90 W hermetic compressor connected to an internal reservoir. A thermostat cycles the compressor as needed, holding the chilled water between 5 °C and 10 °C. The cooling loop operates independently of the heating side, so drawing cold water does not affect the kettle’s performance. No refrigerant maintenance is required during normal use.

Heating Kettle & Double Protection

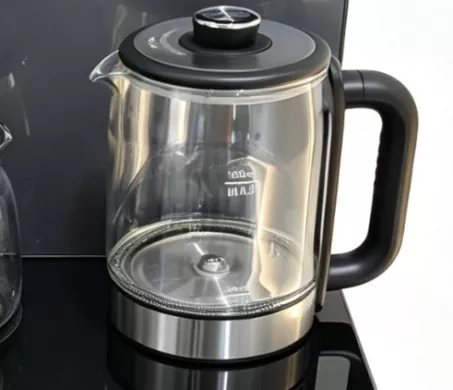

Hot water is supplied by a removable kettle with a 1350 W heating element. The kettle base includes two independent safety switches: an anti‑dry‑burning sensor that disconnects power when the kettle is empty, and an anti‑overflow sensor that prevents heating if the water level exceeds the maximum fill line. A blue indicator light on the kettle body illuminates whenever the heating element is active, providing a clear visual cue during operation.

Temperature Adjustment & Large Display

Users set the desired water temperature via the front digital screen. The kettle heats to the selected value (50 °C to 100 °C) and maintains it. The display shows both the target and current water temperature. Preset increments allow quick switching between temperatures suitable for warm drinking water, tea brewing, or instant coffee. The screen also indicates cooling status and the cold‑water temperature.

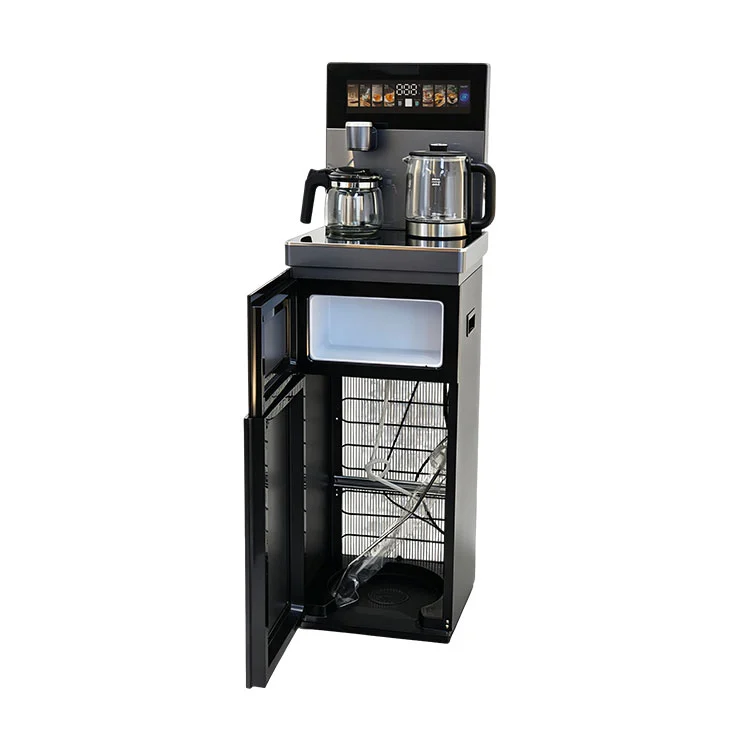

Built‑in Storage Cabinet

The lower portion of the machine contains a spacious enclosed cabinet. Its interior is separated from the compressor and water circuits, so stored items stay dry and cool. The cabinet is large enough to hold tea canisters, cups, a spare kettle, or cleaning supplies. The door opens on front hinges and closes with a magnetic catch.

Certifications & Quality Control

Each Large Screen Temperature Adjustable Tea Bar Machine Water Dispenser undergoes a factory inspection covering water‑circuit sealing, electrical safety (ground bond and insulation), compressor cooling cycle test, and kettle heating/safety‑cut‑off verification. The certificates below are held by Aofukang and are valid for this model.

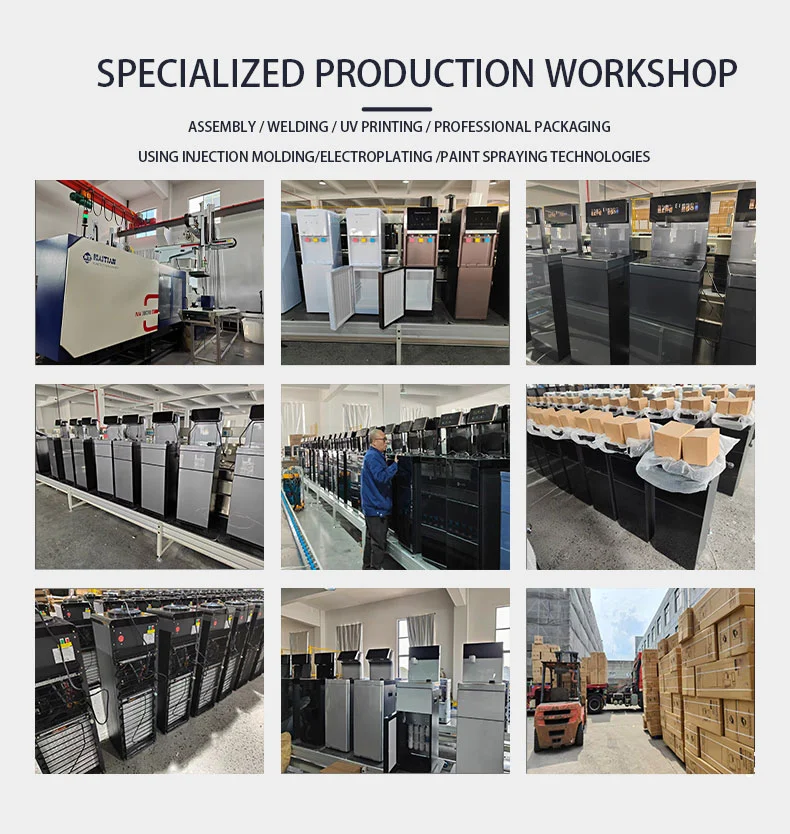

The Cixi factory spans 7,153 m², operates 6 assembly lines, and produces over 300,000 units annually. In‑house injection moulding and metal fabrication give direct control over body panels and internal components. Custom branding, voltage adjustments, and packaging are offered with a minimum order of 100 units.
